Intel DBS1400FP2 伺服器主機板
型 號︰ DBS1400FP2
庫存狀態︰ 有庫存
庫存狀態︰ 有庫存
銷售價︰ NT$15,380
稅前︰ NT$15,380
稅前︰ NT$15,380

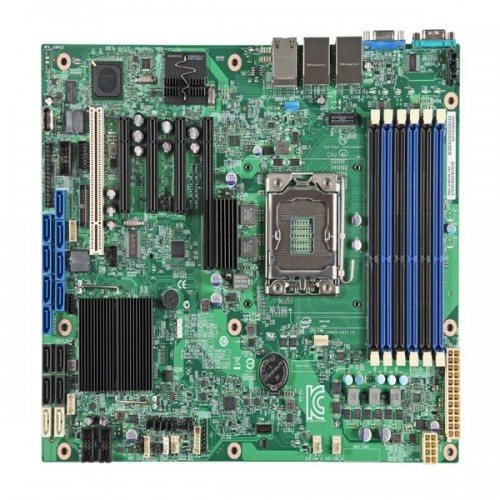

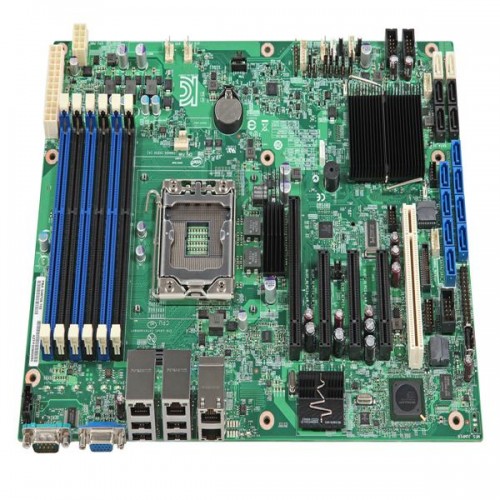

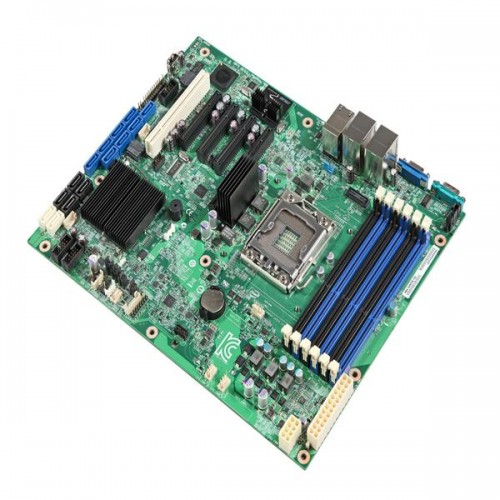

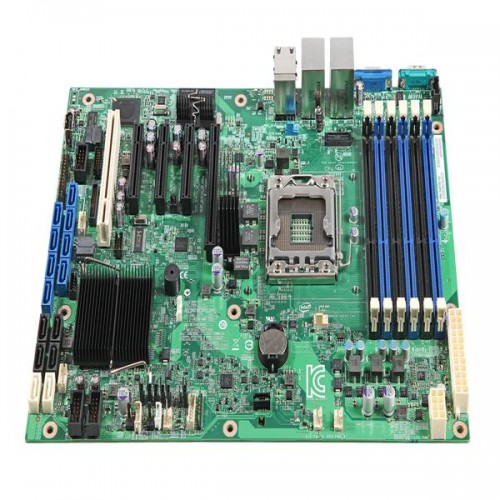

Intel® Server Board S1400FP Family
Pedestal-optimized, rack-friendly, entry-level server board available in an industry-standard form factor
Key features
- Supports one Intel® Xeon® processor E5-2400 product family - 95 W max
- Six memory sockets, registered/unbuffered
- Up to eight SAS/SATA ports plus two SATA 6 Gb ports and four SATA 3 Gb ports via Intel® C600 series chipset with Intel® C600 upgrade key options
- Five PCIe* slots, including one x8 and three x4 Gen 3 slots and one PCIe Gen 2 x4 slot plus one Intel® I/O Expansion Module slot
- SSI ATX form factor (12” x 9.6”)
- Integrated BMC with Intel® Remote Management Module and KVM option Server Engine LLC Pilot III* with 128 MB DDR3
- Supports Intel® Server Management
- SKUs available with integrated dual GbE or quad GbE
- Available in 4U pedestal barebone system options
Low-cost entry one-socket server board for small business
The Intel® Server Board S1400FP family is Intel’s lowest-cost server board supporting the Intel® Xeon® processor E5-2400 product family. The Intel Server Board S1400FP family delivers real server benefits including five PCIe* slots for I/O expandability, 14 onboard SATA ports for storage flexibility, entry-level server connectivity and management via the integrated BMC, in addition to six registered/unbuffered memory slots.
Target applications
The Intel Server Board S1400FP family is ideal as an entry-level server for small businesses, or for storage deployments where minimizing cost is imperative.
|
Board Order Code |
S1400FP2 |
|
Essentials |
|
|
Limited 3-year warranty |
Yes |
|
Yes |
|
|
True when integrated into an Intel® Server Chassis |
|
|
Board form factor |
SSI ATX (12" X 9.6") |
|
Chassis form factor |
Rack, Pedestal |
|
Max CPU configuration |
1 |
|
Socket |
Socket B2 |
|
Integrated systems available |
Yes |
|
Integrated BMC with IPMI |
IPMI 2.0 |
|
Rack-friendly board |
Yes |
|
Embedded options available |
No |
|
Memory Specifications |
|
|
Max memory size (dependent on memory type) |
96 GB |
|
Memory types |
DDR3/LV DDR3 ECC UDIMM 1066/1333, RDIMM/LV RDIMM 1066/1333/1600 (no LRDIMM, QRDIMM) |
|
# of memory channels |
3 |
|
Max memory bandwidth |
307.2 GB/s |
|
# of DIMMs |
6 |
|
ECC memory supported |
Yes |
|
Graphics Specifications |
|
|
Integrated graphics |
Yes |
|
Graphics output |
D-sub |
|
Discrete graphics |
Supported |
|
Expansion Options |
|
|
PCI support |
Supported |
|
PCI Express* revision |
3 |
|
PCIe* x4 Gen 3 |
1 |
|
PCIe x8 Gen 3 |
1 |
|
PCIe x16 Gen 3 |
1 |
|
PCIe x1 Gen 1.x |
1 |
|
I/O expansion x8 Gen 2.X |
1 |
|
I/0 Specifications |
|
|
USB revision |
13 |
|
# of USB ports |
4 |
|
USB 2.0 configuration (back + internal) |
6 |
|
# of SATA ports |
|
|
# of eSATA ports |
8 |
|
RAID configuration |
SW RAID 0/1/10/5 (LSI + RSTE) |
|
# of serial ports |
2 |
|
# of LAN ports |
2 |
|
Integrated LAN |
2x 1 GbE |
|
Embedded USB (eUSB) solid-state drive option |
Yes |
|
Integrated SAS ports |
0 |
|
No |
|
|
Advanced Technologies |
|
|
Intel® Virtualization Technology for Directed I/O (Intel® VT-d) |
Yes |
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Yes |
|
|
Intel® TPM version |
Intel® TPM version 2 |
|
Intel® Quiet System Technology |
No |
|
Yes |
|
|
Intel® Fast Memory Access |
Yes |
|
Intel® Flex Memory Technology |
Yes |
|
Yes |
|
|
Intel® Server Board Technology Innovations |
|
|
Full capabilities |
|
|
Full capabilities |
|
|
Full capabilities |
|
