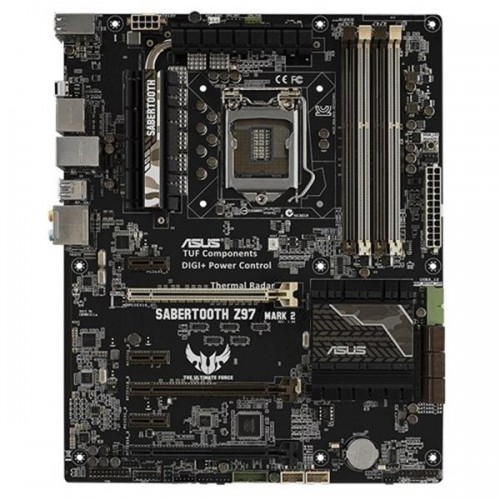

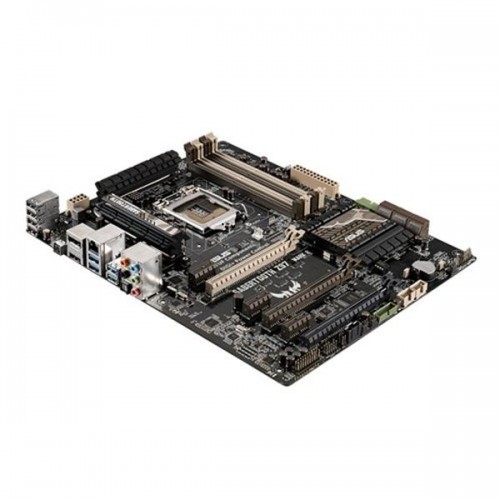

華碩 ASUS SABERTOOTH Z97 MARK 2 主機板
型 號︰ ASUS SABERTOOTH Z97 MARK 2
庫存狀態︰ 有庫存
庫存狀態︰ 有庫存
銷售價︰ NT$5,990
稅前︰ NT$5,990
稅前︰ NT$5,990
Thermal Radar 2Customized fan tuning, complete system cooling
Z97 Thermal Radar 2 now lets you control fans on ASUS graphics cards, as well your case fans! Multiple onboard sensors and the bundled thermistor cables let you monitor graphics card temperatures and other key components in real time, so you can adjust manually or optimize automatically with one click.
Learn More
TUF ICeThe total cooling commander
ASUS TUF engineering team have forged a brand-new microchip that delivers incredibly precise temperature monitoring and fan controls.
TUF ComponentsCertified for tough duty
TUF 10K Ti-Caps+20% temp. tolerance and 5X longer lifetime usage
TUF New Alloy Chokes:13.6% cooler for extra-unbeatable durability
TUF MOSFETs:military-grade certified MOSFETs with lower RDS(on)*
*Low RDS means more power efficient and will thus produce slightly less heat as a by-product of the MOSFET
*Low RDS means more power efficient and will thus produce slightly less heat as a by-product of the MOSFET
Learn More
Server-grade TestsSystematically-tested stability
TUF is proud to be a leading total solution provider. That means we test more than just the product itself — we examine system durability as a whole. Our motherboards undergo extreme temperature variations (thermal shock), extensive Mean Time Between Failure (MTBF) test and many whole-build server-grade stability tests — so you know that your TUF motherboard can be trusted in all conditions.
5 Years WarrantyGuaranteed reliability
Each and every TUF motherboard is built with components certified for military use and undergoes serious server-level burn-in tests, including over 7,000 hours of compatibility checks with over 1,000 devices. TUF is forged solid for your confidence, which is why every board is covered by a 5-year warranty.
TUF ESD GuardsStrong ESD protection for extended component lifespan
Electrostatic discharge (ESD) can happen suddenly, and its damaging effects are easily underestimated. TUF ESD Guards are tested to standards that are up to 2X higher than industry standards, ensuring electrostatic discharges are properly grounded from all onboard connectivity — and that means greater component longevity.
Keyboard and mouse connectors:Additional on-circuit ESD transient-voltage-suppression (TVS) diodes.
USB 3.0/2.0 connectors:On-circuit transient-voltage-suppression (TVS) diodes and capacitor protection for surface-mount and dual-inline packages.
Audio connectors:Capacitor protection on both front and back audio-output circuits.
LAN port:ESD transient-voltage-suppression (TVS) diode protection on the LAN circuit bolstered by an anti-surge LAN connector that increases protection against extreme events, such as lightning strikes.
Media-acclaimed the most intuitive UEFI BIOS
The smoothest mouse-controlled graphical BIOS is with improvements to both EZ and Advanced Modes. It benefits both the novice builder as well as the seasoned overclocker.
Map to MyFavorite:Quickly find tuning options and add preferred tools to the MyFavorites list!
EZ Tuning Wizard – OC and RAID:Just select your hardware and using easy-to-understand scenarios to tune system performance or streamline your RAID configuration for faster data retrieval and backups!
EZ XMP:Improve your DRAM performance with a click!
Intuitive graphical fan control:Fine-tune individual fans simply by dragging a curve with the mouse!
Real-time hardware monitor:Benefit from instant information from the critical parts of your system!
EZ Mode
- Fan Profile:Detailed CPU and case fan information for instant cooling!
- SATA Information:Displays SATA port details for you to easily recognize devices!
- Fast Clock Adjustment:Use mouse controls to change the time and date!
- EZ XMP:Improve your DRAM performance with a click!
Advanced Mode
- Shortcut:Press Enter to create shortcuts to favorite settings, or select an existing shortcut and press F4 to go straight there!
- Quick Notes:Make notes and capture BIOS-related ideas, quickly and conveniently!
- Last Modified Log:Track last change and save preferred profiles onto a USB drive!
- SATA Port Renaming:Rename SATA ports for easy identification!
- CPU
IntelR Socket 1150 for the 5th/New 4th/4th Generation Core? i7/Core? i5/Core? i3/PentiumR/CeleronR Processors
Supports IntelR 22 nm CPU
Supports IntelR Turbo Boost Technology 2.0
* The IntelR Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list - Chipset
IntelR Z97
- Memory
4 x DIMM, Max. 32GB, DDR3 1866/1600/1333 MHz Non-ECC, Un-buffered Memory *
Dual Channel Memory Architecture
Supports IntelR Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). - Graphic
Integrated Graphics Processor- IntelR HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
- Supports DisplayPort with max. resolution 4096 x 2160 @ 24 Hz / 3840 x 2160 @ 60 Hz
Maximum shared memory of 512 MB
Supports IntelR InTru? 3D, Quick Sync Video, Clear Video HD Technology, Insider?
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays - Multi-GPU Support
Supports NVIDIAR Quad-GPU SLI? Technology
Supports AMD Quad-GPU CrossFireX? Technology - Expansion Slots
2 x PCIe 3.0/2.0 x16 (Single at x16, dual at x8/x8)
1 x PCIe 2.0 x16 (max at x4 mode, black) *1
3 x PCIe x1 - Storage
IntelR Z97 chipset :
6 x SATA 6Gb/s port(s), brown,
Support Raid 0, 1, 5, 10
Supports IntelR Smart Response Technology, IntelR Rapid Start Technology, IntelR Smart Connect Technology *2 - LAN
IntelR I218V, 1 x Gigabit LAN Controller(s), Dual interconnect between the Integrated Media Access Controller (MAC) and Physical Layer (PHY)
- Audio
RealtekR ALC1150 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in)
Audio Feature :
- Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound
- Optical S/PDIF out port(s) at back panel
- BD Audio Layer Content Protection
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio amplifier: Provides the highest-quality sound for headphone and speakers
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs - USB Ports
IntelR Z97 chipset :
6 x USB 3.0/2.0 port(s) (2 at back panel, blue, 4 at mid-board)
ASMediaR USB 3.0 controller :
2 x USB 3.0/2.0 port(s) (2 at back panel, blue)
IntelR Z97 chipset :
8 x USB 2.0/1.1 port(s) (4 at back panel, black, 4 at mid-board) - Special Features
TUF Features:
TUF ENGINE! Power Design :
- 8 +2 Digital Phase Power Design
- TUF Components (New Alloy Choke, Ti-Cap. & MOSFET; certified by military-standard)
- ASUS DIGI+ Power Control Utility
Ultimate COOL! Thermal Solution :
- TUF Thermal Radar 2
- TUF ICe
Safe & Stable! Guardian Angel :
- TUF ESD Guards
ASUS Exclusive Features :
- MemOK!
- AI Suite 3
- Ai Charger+
- USB Charger+
- Anti-Surge
- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
- USB 3.0 Boost
- Disk Unlocker
- Turbo LAN
Interactive HomeCloud
- Media Streamer
ASUS EZ DIY :
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
- ASUS USB BIOS Flashback
- ASUS UEFI BIOS EZ Mode
- Multi-language BIOS
- Push Notice
ASUS Q-Design :
- ASUS Q-Shield
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector - Operating System Support
WindowsR 8.1
WindowsR 8

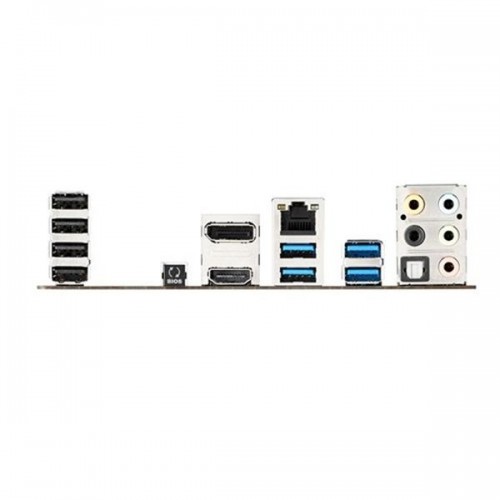

WindowsR 7 - Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.0 (blue)
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x USB BIOS Flashback Button(s) - Internal I/O Ports
2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
4 x Chassis Fan connector(s) (4 x 4 -pin)
2 x Assistant Fan connector(s) (2 x 3 -pin)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x DRCT header(s)
1 x MemOK! button(s)
3 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s) - Accessories
User's manual
ASUS Q-Shield
4 x SATA 6Gb/s cable(s)
1 x SLI bridge(s)
1 x Q-connector(s) (2 in 1)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s) - BIOS
64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.8, ACPI 5.0, Multi-language BIOS, ASUS EZ Flash 2, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut functions, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Manageability
WfM 2.0, DMI 2.7, WOL by PME, PXE
- Support Disc
Drivers
Anti-virus software (OEM version)
ASUS/TUF CPU-Z
ASUS Utilities
EZ Update - Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) - Note
*1:The PCIe 2.0 x16 slot shares bandwidth with USB3 E1/E2 ports at back. The PCIe 2.0 x16 slot default setting is in x2 mode.
*2:These functions will work depending on the CPU installed.
