華擎 ASRock Z97 Extreme6 INTEL Z97 1150 ATX 主機板

型號︰華擎 ASRock Z97 Extreme6
庫存狀態︰有庫存

銷售價︰ NT$5,990
稅前︰ NT$5,990

購買數量︰ - 或 - 收藏
對比

0 評價 | 如果您對本商品有什麼問題或經驗，請在此留下您的意見和建議！

產品詳細介紹商品評價 (已有0條評價)

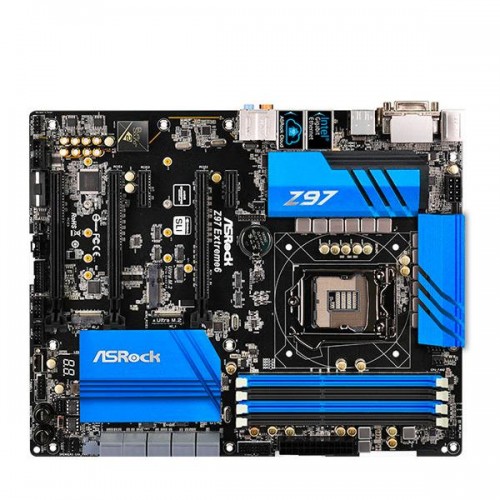

Z97 Extreme6
Platform	- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
	- High Density Glass Fabric PCB
Unique Feature	ASRock Super Alloy
	- XXL Aluminum Alloy Heatsink
	- Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke)
	- Dual-Stack MOSFET (DSM)
	- NexFET? MOSFET
	- 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors)
	- Sapphire Black PCB
	ASRock Ultra M.2 (PCIe Gen3 x4)
	ASRock HDD Saver Technology
	ASRock Full Spike Protection
	ASRock Cloud
	ASRock APP Shop
CPU	- Supports 4^th Gen & 5^th Generation Intel^R Core^TM Processors (Socket 1150)
	- Digi Power design
	- 12 Power Phase design
	- Supports Intel^R Turbo Boost 2.0 Technology
	- Supports Intel^R K-Series unlocked CPUs
	- Supports ASRock BCLK Full-range Overclocking
Chipset	- Intel^R Z97
Memory	- Dual Channel DDR3 Memory Technology
	- 4 x DDR3 DIMM Slots
	- Supports DDR3 3000+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
	- Max. capacity of system memory: 32GB
	- Supports Intel^R Extreme Memory Profile (XMP) 1.3 / 1.2
	- 15μ Gold Contact in DIMM Slots
Expansion Slot	- 2 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4))
	* If M2_1 slot is occupied, PCIE2 slot will run at x8 mode, and PCIE4 slot will run at x4 mode.
	- 1 x PCI Express 2.0 x16 slot (PCIE5: x2 mode)
	- 2 x PCI Express 2.0 x1 Slots
	- 1 x mini-PCI Express Slot
	* mini-PCI Express slot is shared with PCIE3 slot.
	- Supports AMD Quad CrossFireX^TM and CrossFireX^TM
	- Supports NVIDIA^R Quad SLI^TM and SLI^TM
	- 15μ Gold Contact in VGA PCIe Slot (PCIE2)
Graphics	* Intel^R HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
	- Supports Intel^R HD Graphics Built-in Visuals : Intel^R Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1,
	Intel^R InTru^TM 3D, Intel^R Clear Video HD Technology, Intel^R Insider^TM, Intel^R HD Graphics 4400/4600
	- Pixel Shader 5.0, DirectX 11.1
	- Max. shared memory 1792MB
	- Three graphics output options: DVI-I, HDMI and DisplayPort 1.2
	- Supports Triple Monitor
	- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz
	- Supports DVI-I with max. resolution up to 1920x1200 @ 60Hz
	- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 60Hz
	- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port
	(Compliant HDMI monitor is required)
	- Supports HDCP with DVI-I, HDMI and DisplayPort 1.2 Ports
	- Supports Full HD 1080p Blu-ray (BD) playback with DVI-I, HDMI and DisplayPort 1.2 Ports
Audio	- 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec)
	- Premium Blu-ray Audio support
	- Supports Surge Protection (ASRock Full Spike Protection)
	- Supports Purity Sound^TM 2
	- Nichicon Fine Gold Series Audio Caps
	- 115dB SNR DAC with Differential Amplifier
	- TI^R NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets)
	- Direct Drive Technology
	- EMI Shielding Cover
	- PCB Isolate Shielding
	- Supports DTS Connect
LAN	- 1 x Intel^R I218V (Gigabit LAN PHY 10/100/1000 Mb/s)
	- 1 x Realtek RTL8111GR (PCIE x1 Gigabit LAN 10/100/1000 Mb/s)
	- Supports Intel^R Remote Wake Technology (on Intel^R I218V)
	- Supports Wake-On-WAN (on Realtek RTL8111GR)
	- Supports Wake-On-LAN
	- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
	- Supports LAN Cable Detection (on Realtek RTL8111GR)
	- Supports Energy Efficient Ethernet 802.3az
	- Supports PXE

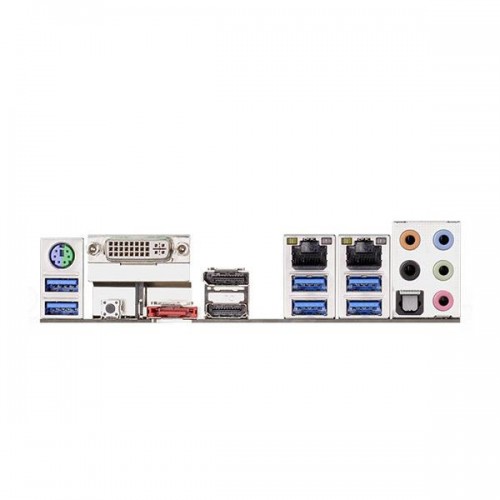

Rear Panel I/O	- 1 x PS/2 Mouse/Keyboard Port
	- 1 x DVI-I Port
	- 1 x HDMI Port
	- 1 x DisplayPort 1.2
	- 1 x Optical SPDIF Out Port
	- 1 x eSATA Connector
	- 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection))
	- 4 x USB 3.0 Ports (Intel^R Z97) (Supports ESD Protection (ASRock Full Spike Protection))
	- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
	- 1 x Clear CMOS Switch
	- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Storage	- 6 x SATA3 6.0 Gb/s Connectors by Intel^R Z97, support RAID (RAID 0, RAID 1, RAID 5, RAID 10,
	Intel Rapid Storage Technology 12 and Intel Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
	- 4 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology
	(SATA3_A4 connector is shared with the eSATA port)
	- 1 x SATA Express Connector (shared with SATA3_4, SATA3_5 and M.2_SSD (NGFF) Socket 3 (M2_2))
	* Support to be announced
	- 1 x eSATA Connector by ASMedia ASM1061, supports NCQ, AHCI, Hot Plug and Port Multiplier
	- 1 x Ultra M.2 Socket (M2_1), supports M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
	- 1 x M.2_SSD (NGFF) Socket 3 (M2_2), supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s)
Connector	- 1 x COM Port Header
	- 1 x TPM Header
	- 1 x Power LED Header
	- 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
	- 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
	- 1 x Power Fan Connector (3-pin)
	- 1 x 24 pin ATX Power Connector
	- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
	- 1 x HDD Saver Connector
	- 1 x PCIe Power Connector
	- 1 x Front Panel Audio Connector
	- 1 x Thunderbolt AIC Connector
	- 2 x USB 2.0 Headers (support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
	- 1 x Vertical Type A USB 2.0
	- 2 x USB 3.0 Headers (support 4 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
	- 1 x Dr. Debug with LED
	- 1 x Power Switch with LED
	- 1 x Reset Switch with LED
	- 1 x BIOS Selection Switch
BIOS Feature	- 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
	- Supports Secure Backup UEFI Technology
	- ACPI 1.1 Compliant wake up events
	- SMBIOS 2.3.1 Support
	- CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Support CD	- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Kloudian Orbweb.ME Professional
Software and UEFI	Software
	- ASRock A-Tuning
	- ASRock Disk Health Report
	- ASRock USB Key
	- ASRock APP Charger
	- ASRock XFast LAN
	- ASRock XFast RAM
	- ASRock Restart to UEFI
	UEFI
	- ASRock Full HD UEFI
	- ASRock My Favorites in UEFI
	- ASRock UEFI Guide
	- ASRock Instant Flash
	- ASRock Internet Flash
	- ASRock Crashless BIOS
	- ASRock OMG (Online Management Guard)
	- ASRock UEFI System Browser
	- ASRock UEFI Tech Service
	- ASRock Dehumidifier
	- ASRock Easy RAID Installer
	- ASRock Easy Driver Installer
Hardware Monitor	- CPU/Chassis temperature sensing
	- CPU/Chassis/Power Fan Tachometer
	- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
	- CPU/Chassis Fan multi-speed control
	- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU Input Voltage, CPU Internal Voltages
OS	- Microsoft^R Windows^R 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Certifications	- FCC, CE, WHQL
	- ErP/EuP ready (ErP/EuP ready power supply is required)

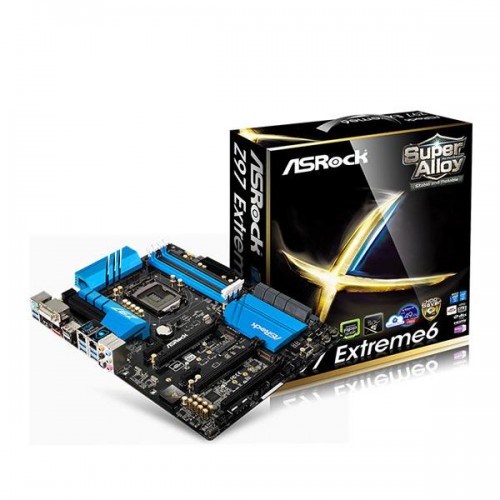

Accessories	- 1 x ASRock SLI_Bridge_2S Card
	- Quick Installation Guide, Support CD, I/O Shield
	- 4 x SATA Data Cables
	- 1 x HDD Saver Cable
	- 2 x Screws for M.2 Sockets
	- 1 x Screw for mini-PCIe Slot
