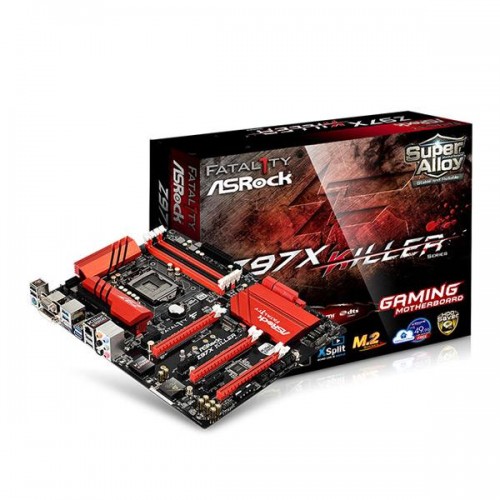

華擎 ASRock Fatal1ty Z97X Killer INTEL Z97 1150 ATX 主機板
型 號︰ 華擎 ASRock Fatal1ty Z97X Killer
庫存狀態︰ Out Of Stock
庫存狀態︰ Out Of Stock
銷售價︰ NT$4,990
稅前︰ NT$4,990
稅前︰ NT$4,990
| Z97X Killer | ||
| Platform | - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm | |
| - High Density Glass Fabric PCB | ||
| Unique Feature | ASRock Super Alloy | |
| - XXL Aluminum Alloy Heatsink | ||
| - Premium Alloy Choke (Reduces 70% core loss compared to iron powder choke) | ||
| - Dual-Stack MOSFET (DSM) | ||
| - NexFET? MOSFET | ||
| - 12K Platinum Caps (100% Japan made high quality conductive polymer capacitors) | ||
| - Sapphire Black PCB | ||
| ASRock HDD Saver Technology | ||
| ASRock Full Spike Protection | ||
| ASRock Cloud | ||
| ASRock APP Shop | ||
| Gaming Armor | CPU Power | |
| - Hi-Density Power Connector | ||
| - Dual-Stack MOSFET (DSM) | ||
| Memory | ||
| - NexFET? MOSFET | ||
| - 15μ Gold Contact in DIMM Slots | ||
| VGA Card | ||
| - 15μ Gold Contact in VGA PCIe Slot (PCIE2) | ||
| - PCIe Power Connector | ||
| Internet | ||
| - QualcommR AtherosR KillerTM LAN | ||
| Cooling | ||
| - XXL Aluminum Alloy Heatsink | ||
| Audio | ||
| - Purity SoundTM 2 | ||
| CPU | - Supports 4th Gen & 5th Generation IntelR CoreTM Processors (Socket 1150) | |
| - Digi Power design | ||
| - 8 Power Phase design | ||
| - Supports IntelR Turbo Boost 2.0 Technology | ||
| - Supports IntelR K-Series unlocked CPUs | ||
| - Supports ASRock BCLK Full-range Overclocking | ||
| Chipset | - IntelR Z97 | |
| Memory | - Dual Channel DDR3 Memory Technology | |
| - 4 x DDR3 DIMM Slots | ||
| - Supports DDR3 3000+(OC)/2933(OC)/2800(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory | ||
| - Max. capacity of system memory: 32GB | ||
| - Supports IntelR Extreme Memory Profile (XMP) 1.3 / 1.2 | ||
| Expansion Slot | - 3 x PCI Express 3.0 x16 Slots (PCIE2/PCIE4/PCIE6: single at x16 (PCIE2); dual at x8 (PCIE2) / x8 (PCIE4); | |
| triple at x8 (PCIE2) / x4 (PCIE4) / x4 (PCIE6) | ||
| - 3 x PCI Express 2.0 x1 Slots | ||
| - Supports AMD Quad CrossFireXTM, 3-Way CrossFireXTM and CrossFireXTM | ||
| - Supports NVIDIAR Quad SLITM and SLITM | ||
| Graphics | * IntelR HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. | |
| - Supports IntelR HD Graphics Built-in Visuals : IntelR Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, | ||
| IntelR InTruTM 3D, IntelR Clear Video HD Technology, IntelR InsiderTM, IntelR HD Graphics 4400/4600 | ||
| - Pixel Shader 5.0, DirectX 11.1 | ||
| - Max. shared memory 1792MB | ||
| - Three graphics output options: D-Sub, DVI-D and HDMI | ||
| - Supports Triple Monitor | ||
| - Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz | ||
| - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz | ||
| - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz | ||
| - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port | ||
| (Compliant HDMI monitor is required) | ||
| - Supports HDCP with DVI-D and HDMI Ports | ||
| - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports | ||
| Audio | - 7.1 CH HD Audio with Content Protection (Realtek ALC1150 Audio Codec) | |
| - Premium Blu-ray Audio support | ||
| - Supports Surge Protection (ASRock Full Spike Protection) | ||
| - Supports Purity SoundTM 2 | ||
| - Nichicon Fine Gold Series Audio Caps | ||
| - 115dB SNR DAC with Differential Amplifier | ||
| - TIR NE5532 Premium Headset Amplifier (Supports up to 600 Ohm headsets) | ||
| - Direct Drive Technology | ||
| - EMI Shielding Cover | ||
| - PCB Isolate Shielding | ||
| - Supports DTS Connect | ||
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s | |
| - QualcommR AtherosR KillerTM E2200 Series | ||
| - Supports QualcommR AtherosR Security Wake On Internet Technology | ||
| - Supports Wake-On-LAN | ||
| - Supports Lightning/ESD Protection (ASRock Full Spike Protection) | ||
| - Supports Energy Efficient Ethernet 802.3az | ||
| - Supports PXE | ||
| Rear Panel I/O | - 1 x PS/2 Mouse/Keyboard Port | |
| - 1 x D-Sub Port | ||
| - 1 x DVI-D Port | ||
| - 1 x HDMI Port | ||
| - 1 x Optical SPDIF Out Port | ||
| - 1 x USB 2.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| - 1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| - 2 x USB 3.0 Ports (ASMedia ASM1042AE) (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| - 4 x USB 3.0 Ports (IntelR Z97) (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | ||
| - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone | ||
| Storage | - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and Intel | |
| Smart Response Technology), NCQ, AHCI, Hot Plug and ASRock HDD Saver Technology | ||
| - 1 x SATA Express Connector (shared with SATA3_4, SATA3_5 and M.2_SSD (NGFF) Socket 3) | ||
| * Support to be announced | ||
| - 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen2 x2 (10 Gb/s) | ||
| Connector | - 1 x COM Port Header | |
| - 1 x TPM Header | ||
| - 1 x Power LED Header | ||
| - 2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin) | ||
| - 3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin) | ||
| - 1 x Power Fan Connector (3-pin) | ||
| - 1 x 24 pin ATX Power Connector | ||
| - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) | ||
| - 1 x HDD Saver Connector | ||
| - 1 x PCIe Power Connector | ||
| - 1 x Front Panel Audio Connector | ||
| - 1 x Thunderbolt AIC Connector | ||
| - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| - 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) | ||
| BIOS Feature | - 2 x 64Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) | |
| - Supports Secure Backup UEFI Technology | ||
| - ACPI 1.1 Compliant wake up events | ||
| - SMBIOS 2.3.1 Support | ||
| - CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment | ||
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Kloudian Orbweb.ME Professional, XSplit, Killer Network Manager | |
| Software and UEFI | Software | |
| - ASRock F-Stream | ||
| - ASRock Disk Health Report | ||
| - ASRock USB Key | ||
| - ASRock Key Master | ||
| - ASRock APP Charger | ||
| - ASRock XFast RAM | ||
| - ASRock Restart to UEFI | ||
| UEFI | ||
| - ASRock Full HD UEFI | ||
| - ASRock My Favorites in UEFI | ||
| - ASRock UEFI Guide | ||
| - ASRock Instant Flash | ||
| - ASRock Internet Flash | ||
| - ASRock Crashless BIOS | ||
| - ASRock OMG (Online Management Guard) | ||
| - ASRock UEFI System Browser | ||
| - ASRock UEFI Tech Service | ||
| - ASRock Dehumidifier | ||
| - ASRock Easy RAID Installer | ||
| - ASRock Easy Driver Installer | ||
| Hardware Monitor | - CPU/Chassis temperature sensing | |
| - CPU/Chassis/Power Fan Tachometer | ||
| - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) | ||
| - CPU/Chassis Fan multi-speed control | ||
| - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU Input Voltage, CPU Internal Voltages | ||
| OS | - MicrosoftR WindowsR 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit | |
| Certifications | - FCC, CE, WHQL | |
| - ErP/EuP ready (ErP/EuP ready power supply is required) | ||
| Accessories | - 1 x ASRock SLI_Bridge_2S Card | |
| - Quick Installation Guide, Support CD, I/O Shield | ||
| - 4 x SATA Data Cables | ||
| - 1 x HDD Saver Cable | ||
| - 1 x Screw for M.2_SSD (NGFF) Socket 3 | ||
