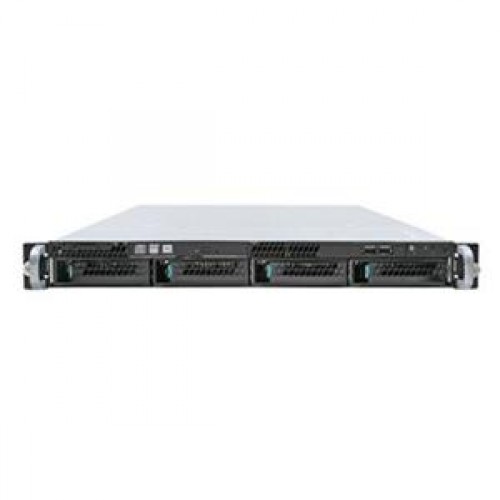

Intel R1304GZ4GC Barebone伺服器

Intel® Server System R1300GZ Family

A 1U rack-optimized system with 3.5” drives and a compute platform supporting 24 DIMMs for maximum memory capacity and I/O flexibility

Key Features

• Four 3.5” hot-swap hard drives
• Two 750W Platinum efficiency common redundant power supplies
• Six dual rotor redundant cooling fans
• Intel® Server Board S2600GZ
• Supports the Intel® Xeon® processor E5-2600 product family
• 24 memory sockets support LR/U/R-DIMMs delivers up to 768 GB of memory capacity
• Two PCIe* Gen3 x24 Super Slots for superb I/O flexibility
• Energy efficient spread core design with Intel® Efficient Power Technology
• Onboard flash boot support includes eUSB SSD and SATA DOM
• Intel® Trusted Platform Module (Intel® TPM) header for Intel® Trusted Execution Technology (Intel® TXT) support

Available expansion options include:

• Intel® RAID C600 upgrade key including options for up to eight SAS/SATA ports plus two SATA 6Gb ports
• Intel® Remote Management Module 4
• Intel® I/O Expansion Modules

Incredible Server Performance and Flexibility in an Energy Efficient Custom Design

The Intel® Server System R1300GZ family takes full advantage of the new Intel® Xeon® processor E5-2600 product family capabilities with the Intel® Server Board S2600GZ family. The Intel Server System R1300GZ features an energy efficient spread core design and maximum (768 GB) memory capacity with up to 24 DIMMS, S2600GZ-based rack-optimized server systems deliver unmatched performance, I/O capacity, and flexibility in an expansive family of 1U and 2U systems for the most demanding enterprise data center, cloud, or high performance computing (HPC) environments.

The Intel® Server System R1300GZ family makes use of several exclusive new Intel® Server Board Technology Innovations exclusively available on Intel® Server Products. Intel Advanced Management Technology helps simplify and optimize system management for higher capacity and more secure platform management; Intel® Quiet Thermal Technology provides thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency; and Intel® Efficient Power Technology helps improve power efficiency and reliability.

Target Applications

For data center, cloud, or HPC customers who require a no compromise, rack-optimized solution, the S2600GZ family delivers maximum (768 GB) memory capacity, I/O expansion, and powerful performance in an energy efficient design.
