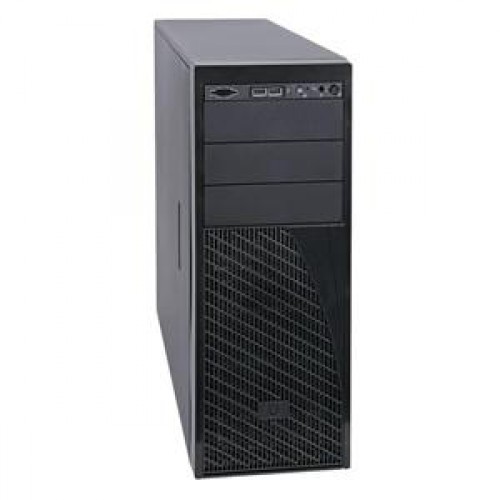

Intel P4304CR2LFJN Barebone伺服器

Intel® Workstation System P4300CR Family

Expert workstation system provides maximum performance and high-end I/O capacity for the most demanding design and analytic applications

Key Features

• 750W, 1200W, or 1600W Platinum efficiency power supplies
• Fixed drive carrier for up to four 3.5” drives
• Intel® Workstation Board W2600CR
• Supports two Intel® Xeon® processor E5-2600 product family - 150W processor support
• Up to eight single-width PCIe* Gen3 slots or four double-width adapters for  maximum I/O capacity/flexibility
• 16 memory sockets support LR/U/R-DIMMs
• Firewire* 1394b
• Intel® High Definition Audio (Intel® HD Audio) 7.1
• Intel® Trusted Platform Module (Intel® TPM) header for Intel® Trusted Execution Technology (Intel® TXT) support

Available expansion options include:

• Intel® RAID C600 upgrade key including options for up to eight SAS/SATA ports plus two SATA 6Gb ports
• Intel^® Remote Management Module 4 (Intel® RMM4)
• Intel® I/O Expansion Modules

All the Latest Intel® Server Board Technology Innovations Delivered in a Workstation System

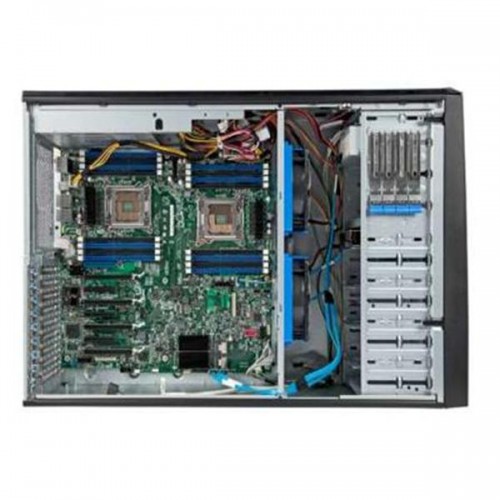

The Intel® Workstation System P4304CR delivers the highest levels of performance and maximum I/O capacity. Intel® Workstation System P4304CR supports dual Intel® Xeon® E5-2600 processors, up to eight single-width PCIe Gen3 adapters or four double-width adapters, 16 DIMMs, Intel® HD Audio 7.1, 1394b Firewire*, and two 1Gb Ethernet ports in a powerful chassis. These workstation systems perfectly balance the need for computational power with I/O capacity and flexibility to deliver amazing application performance.

The Intel® Workstation System P4304CR makes use of several exclusive new Intel® Server Board Technology Innovations. The Intel Advanced Management Technology¹ helps simplify and optimize system management for higher capacity and more secure platform management. Intel® Quiet Thermal Technology enhancements provide thermal and acoustic management to reduce unnecessary noise and provide cooling flexibility while maximizing system efficiency. Additionally, this board also makes use of power delivery enhancements from the Intel® Efficient Power Technology to help improve power efficiency and reliability.

Target Applications

This is the ideal system for compute intensive applications in the areas of design, engineering, financial, and scientific content creation that require the latest in processor performance and I/O capacity.
